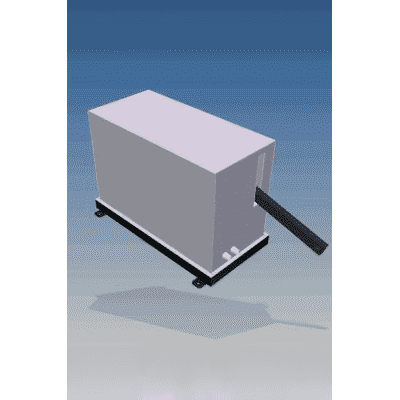

Bell Hammer Actuator 50lbs (22.7kg)

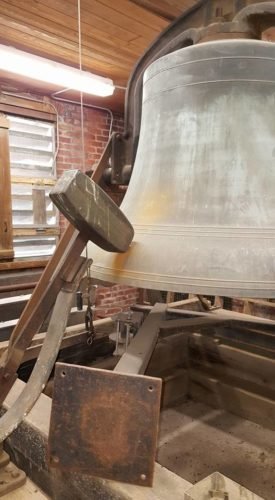

For driving existing mechanical bell hammers. For 10lbs (4.5kg) and less hammer weight see BELL-HMR-ACT-10 For between 11lbs (5.0kg) and 35lbs (15.8kg) see BELL-HMR-ACT-35

  • 50 Pound Bell Hammer Actuator
  • 50 Pound Bell Hammer Actuator
Part Number: BELL-HMR-ACT-50.
Category: .

MECHANICAL SPECIFICATIONS
Up to 50lb (22.7kg) bell hammer
2 sec min between bell strikes
Pull distance 5″(12.7cm) -10″(25.4cm)

ELECTRICAL SPECIFICATIONS
115VAC 60 HZ 8 Amp (240/50HZ available)
24VAC Trigger signal
Gear motor with Electronic Brake

99B Control Required for operation

Additional information available in the documentation tab above.
