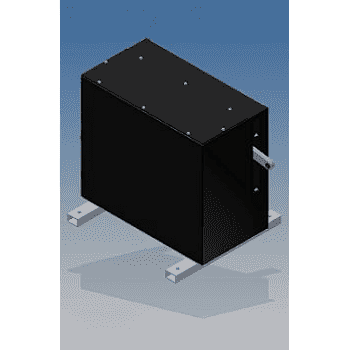

Bell Hammer Actuator 35lbs (15.8kg)

For driving existing mechanical bell hammers. For 10lbs (4.5kg) and less hammer weight see BELL-HMR-ACT-10 For between 35lbs (15.8kg) and 50lbs (22.7kg) see BELL-HMR-ACT-50

MECHANICAL SPECIFICATIONS
Up to 35lb (22.7kg) bell hammer
2 sec min between bell strikes
Pull distance 2"(5.0cm) -8"(20.3cm)

ELECTRICAL SPECIFICATIONS
115VAC 60 HZ 3 Amp (240/50HZ available)
24VAC Trigger signal
Gear motor with Electronic Brake

Product Specifications
99B Control Required for operation
